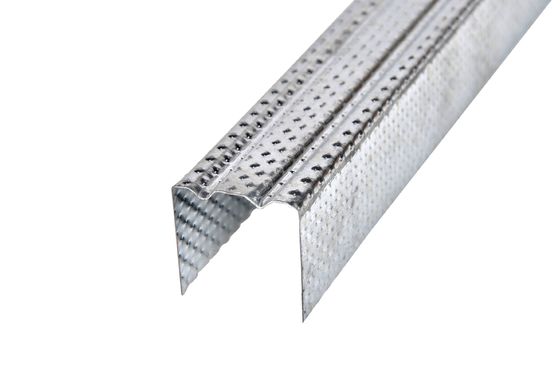

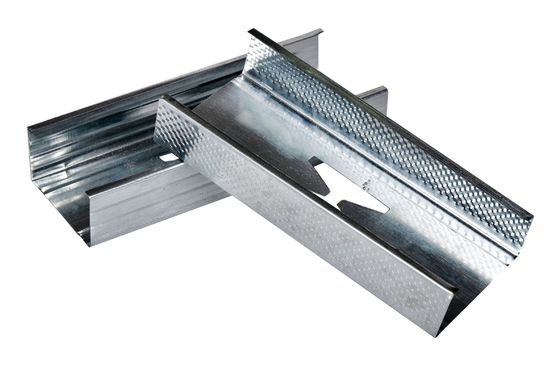

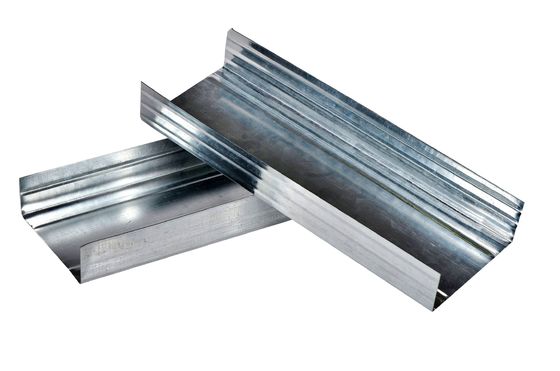

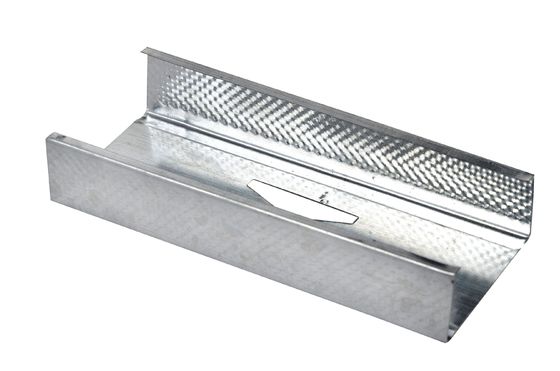

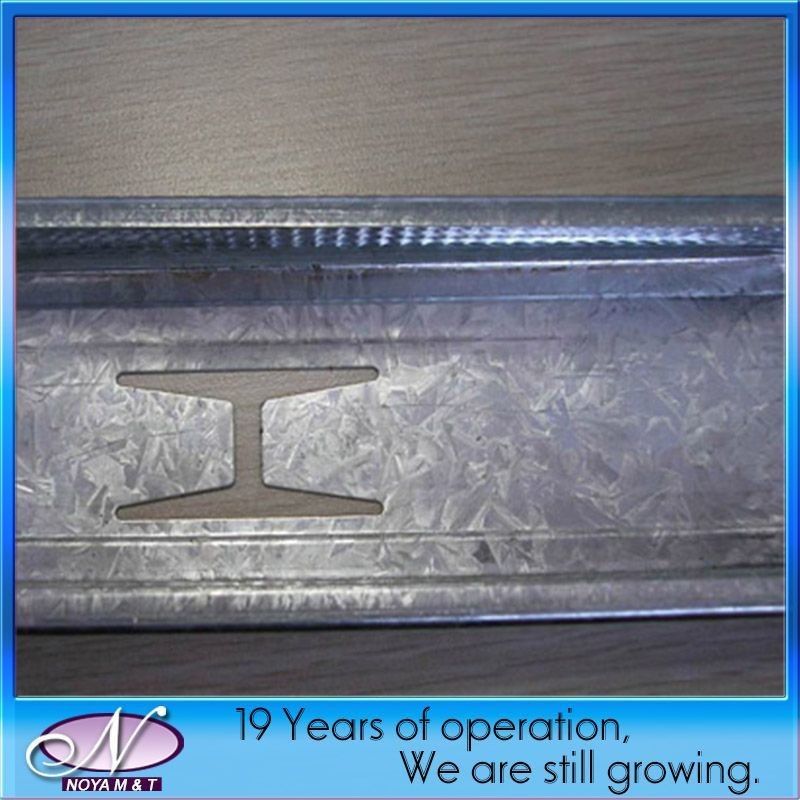

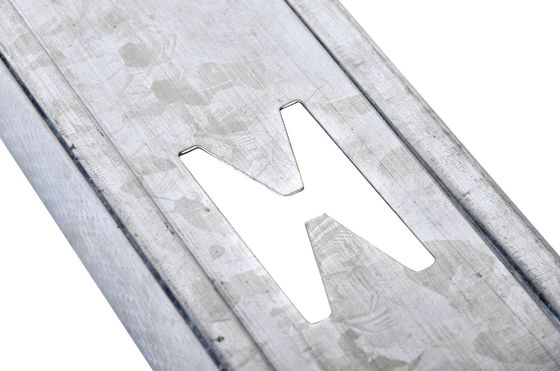

52mm/72mm/75mm/100mm/148mm Metal Stainless Steel Main Channel for Wall or Ceiling System
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | one pallet |
|---|---|
| Delivery Time: | 10 days after receive the downpay |
| Payment Terms: | T/T, LC, west union, paypal. DP |
|
Detail Information |
|||
| Model NO.: | P6260165 | Specification: | D50, D60, 50*35/70*35/73*36mm |
|---|---|---|---|
| Shape: | L-type, U-Type | Usage: | Terminal Building, Terminal Building, Office Building, Hotel, Office Building |
| Function: | Fireproofing, Sound Proof, Fireproofing, Anti-Corrosion | Material: | Steel, Steel |
| After-Sales Service: | ["Replace",["Replace","Replace"]] | Perforated: | Not Perforated |
| Width: | 52mm/72mm/75mm/100mm/148mm | Height: | 25mm/29mm/32mm/40mm |
| Thickness: | 0.40 To 1.0mm | Standard Length: | 3000mm |
| Transport Package: | By Cartons | Trademark: | NOYA |
| Origin: | China | HS Code: | 44111499 |
| Supply Ability: | 1000 Ton/Tons Per Month | ||
Product Description
1. Material: Galvanized Steel
2. Application: Dry wall Partition and Suspension System
We can produce all size according clients requirement.
Specification:
TRACK:
Width: 52mm/72mm/75mm/100mm/148mm
Height: 25mm/29mm/32mm/40mm
Thickness: 0.40 to 1.0mm
Standard length: 3000mm
Stud:
Width: 50mm/70mm/73mm/98mm/146mm
Height: 32mm/34.5mm/36mm
Thickness: 0.40 to 1.0mm
Standard length: 3000mm
Omega(Furring channel): 35*22mm / 45*22mm / 35*16mm
Wall Angle: 20*20mm/22*22mm/25*25mm
Main Channel: 38*11mm/50*15mm/60*27mm
CD & UD SYSTEM C&D 60*27, 27* 28mm,
Advantage:
Excellent fire resistive ability. Suit residuals and public places.
Fast installation. Easy to control the construction progress
Combinative construction. Easy to keep work places clean.
Good vibration absorbing ability. Suit buildings on seismic belt.
Fast reconstruction for easy assembling and dismantling.
Filling acoustic insulation can enhance the sound-proof ability.
Surface of the walls are smooth. Easy to paint or paste wallpaper.
Electric wires are hidden in the wall
It is easy to drill through the wall for construction.
It could be applied under the original ceiling
2. Application: Dry wall Partition and Suspension System
We can produce all size according clients requirement.
Specification:
TRACK:
Width: 52mm/72mm/75mm/100mm/148mm
Height: 25mm/29mm/32mm/40mm
Thickness: 0.40 to 1.0mm
Standard length: 3000mm
Stud:
Width: 50mm/70mm/73mm/98mm/146mm
Height: 32mm/34.5mm/36mm
Thickness: 0.40 to 1.0mm
Standard length: 3000mm
Omega(Furring channel): 35*22mm / 45*22mm / 35*16mm
Wall Angle: 20*20mm/22*22mm/25*25mm
Main Channel: 38*11mm/50*15mm/60*27mm
CD & UD SYSTEM C&D 60*27, 27* 28mm,
Advantage:
Excellent fire resistive ability. Suit residuals and public places.
Fast installation. Easy to control the construction progress
Combinative construction. Easy to keep work places clean.
Good vibration absorbing ability. Suit buildings on seismic belt.
Fast reconstruction for easy assembling and dismantling.
Filling acoustic insulation can enhance the sound-proof ability.
Surface of the walls are smooth. Easy to paint or paste wallpaper.
Electric wires are hidden in the wall
It is easy to drill through the wall for construction.
It could be applied under the original ceiling
| Products name | Metal Stainless Steel Main Channel for Wall or Ceiling System |
| Products Design | Design personalization, according to customers drawings or photos. |
| Services | We can supply comprehensive service for you with professional production, sales, shipping and after-service team. |
