Calcium Silicate Pipe Thermal Insulation Building Construction Materials 220kg/m3 White
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | one pallet |
|---|---|
| Delivery Time: | 10 days after receive the downpay |
| Payment Terms: | T/T, LC, west union, paypal. DP |
|
Detail Information |
|||
| Model NO.: | Insulation Material | Name: | Insulation Material |
|---|---|---|---|
| Delivery Detail: | 5-15 Working Days When We Received The Deposit | Refractoriness: | 800-1400°C |
| Diameter: | 4-50mm | Surface Treatment: | Glazed Tiles |
| Color: | White | Usage: | Stove, Cave Dwelling Of Steel Mill, Petrochemical |
| Transport Package: | Pallets | Specification: | 220kg/m3 |
| Trademark: | NOYA | Origin: | China |
| HS Code: | 4503900000 | Supply Ability: | 60 Cubic Meter/Cubic Meters Per Day |
| Customization: | Available | Material: | Calcium Silicate |
| Character: | Asbestos-Free | ||
Product Description
Building Thermal Heat Insulation Material for Calcium Silicate Pipe
Noya light cement board is a non calcium silicate insulation product. It is recommended as thermal insulation in stove, cave dwelling of steel mill, petrochemical, ceramics, glass, cement industries and power industries as well as other various ancilary heating equipment.
It has the following characteristic:
1) High strenghth: The strongest one among the inorganic thermal insulation material with the similar density;
2)Thermal-resistance: Non -deformation at the temperature used;
3)Thermal insulation: Lower thermal conductivity than ohter hard mass thermal insultion materials.
4)Asbestos-free
Different shaped are tolerance:
Plate, Cuved Sheet; Pipe cover
5)Dimension

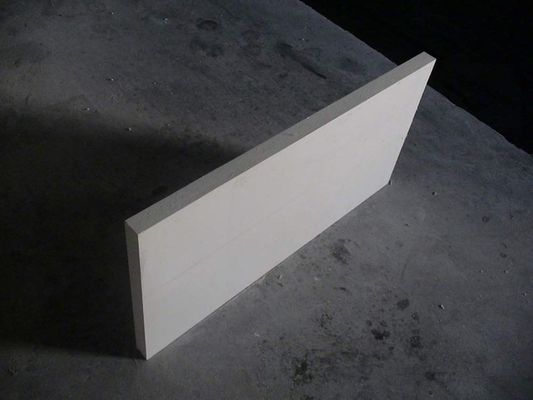

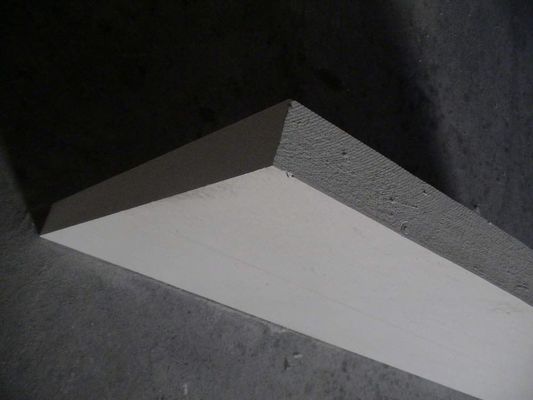

Plate
610*150 mm / 610*300 mm / 915*305 mm / 1000*500 mm
Thickness: 25-100 mm

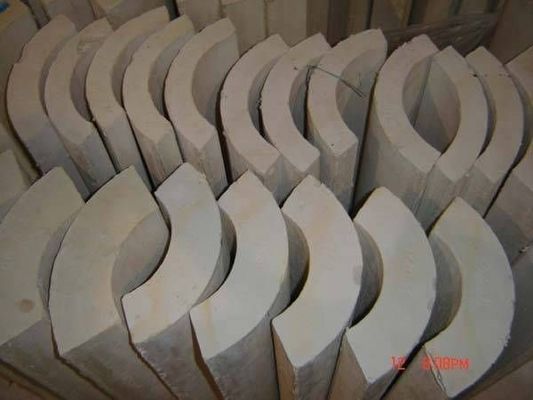

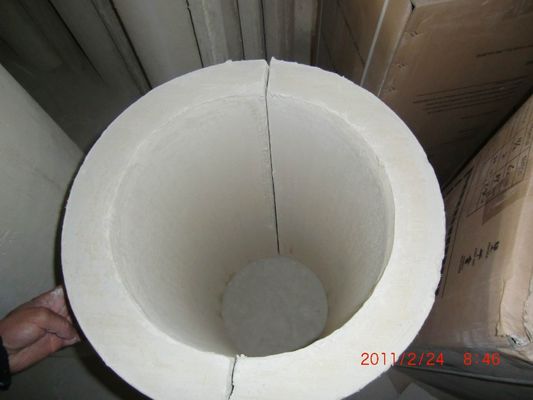

Pipe Cover
Inside Diameter: 16-1836 mm
Thickness: 25-200 mm
Length: 610 mm / 915 mm
Over the past several years, we have significantly expanded our business scope, now having a wide selection of products available. Our main series include wall and ceiling materials such as Mineral Wool Ceiling Board, Rock Wool Ceiling Board, Glass Fiber Ceiling Board, Aluminum Ceiling Board, Calcium Silicate Board, Magnesia Board, Gypsum Wallboard, Metal Studs & Tracks, Ceiling Suspension System, Wooden Acoustic Board, Acoustic Fiberglass Wallboard and so on. We also trade a selection of insulation materials such as Glasswool Board / Tube /Blanket and Rockwool Board /Tube /Blanket.
These products have many applications, and are extensively used in the construction of supermarkets, hotels, office buildings, and airports. They have many functions including heat preservation, insulation, fireproofing and heat isolation. Due to their beautiful designs, colors, styles and excellent decorativeness, we have won the praise of many customers.
Noya light cement board is a non calcium silicate insulation product. It is recommended as thermal insulation in stove, cave dwelling of steel mill, petrochemical, ceramics, glass, cement industries and power industries as well as other various ancilary heating equipment.
It has the following characteristic:
1) High strenghth: The strongest one among the inorganic thermal insulation material with the similar density;
2)Thermal-resistance: Non -deformation at the temperature used;
3)Thermal insulation: Lower thermal conductivity than ohter hard mass thermal insultion materials.
4)Asbestos-free
Different shaped are tolerance:
Plate, Cuved Sheet; Pipe cover
5)Dimension
Plate
610*150 mm / 610*300 mm / 915*305 mm / 1000*500 mm
Thickness: 25-100 mm
Pipe Cover
Inside Diameter: 16-1836 mm
Thickness: 25-200 mm
Length: 610 mm / 915 mm
Over the past several years, we have significantly expanded our business scope, now having a wide selection of products available. Our main series include wall and ceiling materials such as Mineral Wool Ceiling Board, Rock Wool Ceiling Board, Glass Fiber Ceiling Board, Aluminum Ceiling Board, Calcium Silicate Board, Magnesia Board, Gypsum Wallboard, Metal Studs & Tracks, Ceiling Suspension System, Wooden Acoustic Board, Acoustic Fiberglass Wallboard and so on. We also trade a selection of insulation materials such as Glasswool Board / Tube /Blanket and Rockwool Board /Tube /Blanket.
These products have many applications, and are extensively used in the construction of supermarkets, hotels, office buildings, and airports. They have many functions including heat preservation, insulation, fireproofing and heat isolation. Due to their beautiful designs, colors, styles and excellent decorativeness, we have won the praise of many customers.
| Item | Unit | NOYA Product NOYA | Test Result |
| Bulk Density (max.) | Kg/m3 | 220 | 220±20 |
| Flexural Strength (min.) | Mpa | 0.3 | 0.3 |
| Compressive Strength (min.) at 5% deformation 5% | Mpa | 0.6 | 0.5 |
| Linear Shrinkage (max.) after heating for 16h at 650ºC | % | 2 | 2 |
| Thermal Conductivity (max.) average temp.70ºC | w/m.k | 0.056 | 0.056 |
| Service Temp.(max.) | ºC | 650 | 650 |
| Moisture content (max.) | % | 7.5 | 7.5 |
